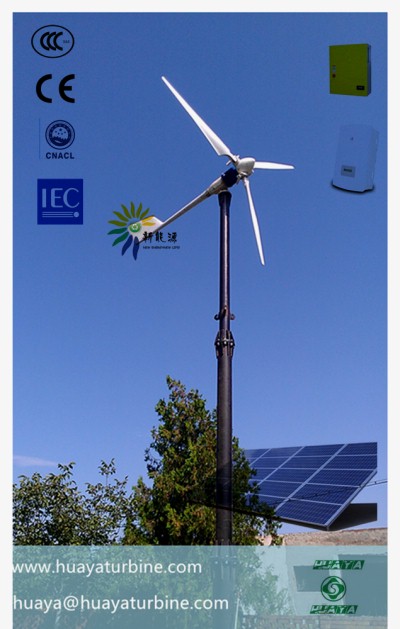

2kw pitch controlled wind turbine introduce:

Centrifugal pitch controlled mechanism of Wind turbine adjusts blade pitch following wind rotor rotating speed, and keep wind turbine at rated rotating speed. The wind turbine has a stable output power and safe running and is maintenance free. Wind rotor never goes to over speed even encounter to variable wind speed and strong gale.

Low wind speed start up, pitch regulation, safe system

Pitch controlled element

Rotating speed change of wind rotor drives the centrifugal pitch control mechanism to adjust blade pitch; wind pressure on wind rotor will reduce, and then wind turbine rotating speed slow down. Close loop control, reliable regulation.

Pitch control mechanism is sensitive, reliable, and can be used in variable environments.

Wind turbine start up: keep a big blade pitch, start up with 2m/s wind speed;

Wind turbine start to run: reduce blade pitch step by step, better for speedup;

4-12m/s wind speed: regulate the optimum blade pitch to keep the max output power of wind turbine;

Encountering to strong wind: adjust blade pitch into negative angle to keep rotating speed within limits;

Manual stop: operate manual winch to adjust blade pitch into negative angle, blade will lose it aerodynamics, start mechanical brake to stop wind turbine.

2kw pitch controlled wind turbine technical data:

Blades rotor diameter: 3.8m

Blades material: FRB

Blades q'ty: 3 pcs

Rated wind speed: 9m/s

Start up wind speed: 3m/s

Working wind speed: 3-25m/s

Survival wind speed: 40m/s

Start up torque: 1.4N.m

Speed regulation method: centrifugal pitch regulated and yaw

Stop method: manual brake system and electromagnetic braking

Generator type: 3 phase AC PMA

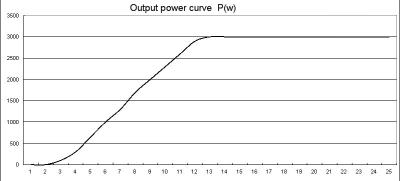

Rated output power: 2kw

Max output power: 3kw

Rated rotation speed: 380rpm

Working voltage: DC24V-500V

Wind turbine main body weight: 120kgs

Working system: off grid working system/on grid working system/water heating system
